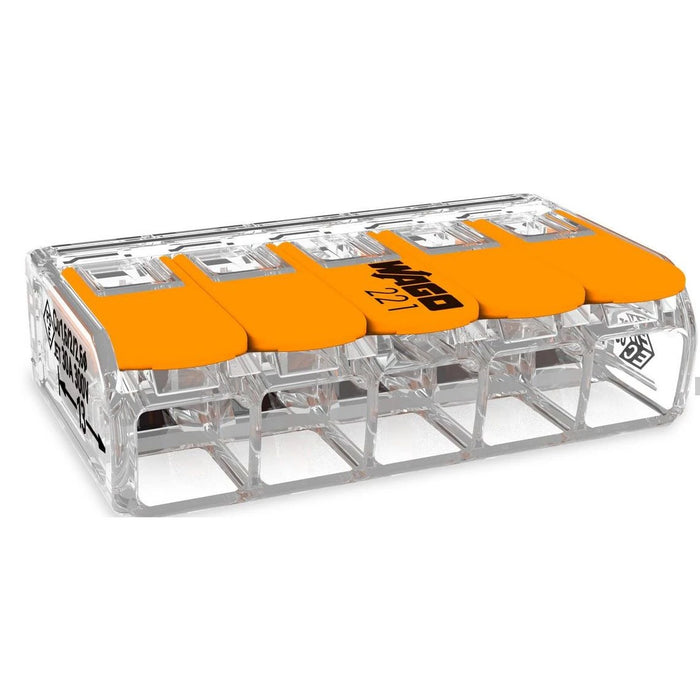

Connector Compact Lever 5 Way 6mm² Orange Clear [Pack=15]

The Wago Compact Splicing Connector features a lever mechanism that simplifies the termination of conductors ranging from 0.5 to 6mm². The process is straightforward: pull the lever up, insert the conductor, and push the lever back down for secure connections.

Technical Specifications

Download Product Technical Data Sheet

• Type: Push-in terminal
• Number of Clamp Positions: 5
• Nominal Voltage: 450 V
• Nominal Current: 41 A
• Conductor Cross Section (Solid, Stranded): 0.5 - 6 mm²
• Conductor Cross Section (Flexible, with Cable End Sleeve): 0.5 - 6 mm²
• Suitable for Multi-Wire Core: Yes
• Nominal Cross Section: 0.5 - 6 mm²
• Suitable for Flexible Core: Yes
• Transparent: Yes
• With Operation Lever: Yes
• Temperature Rating: Maximum surrounding air temperature of 85°C
