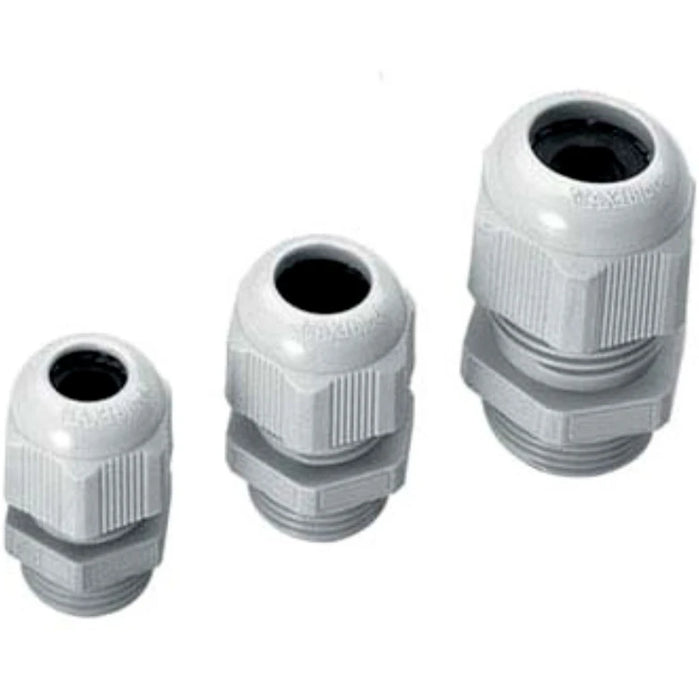

Cable Gland M16

M16x1.5 Polyamide PA6.6 Extended Thread Cable Gland in light grey offers a robust and reliable solution for your cabling needs. Constructed from high-quality polyamide PA6.6, this cable gland features a self-extinguishing property classified as V2 (UL 94), ensuring enhanced safety in various applications.

Designed to operate within a temperature range of -20°C to +90°C, it boasts an IP68 protection class, providing excellent resistance against dust and water ingress. The metric thread size of M16 with a pitch of 1.5 mm guarantees a secure fit, while the RAL 7035 light grey colour makes it suitable for a variety of settings. Additionally, this cable gland comes with a CE marking, ensuring compliance with relevant safety standards.

Technical Specifications

Download Product Technical Data Sheet

• Working temperature: -40 to 100 °C
• Halogen free: No
• Multi cable sealing: No
• Separable (split) screw gland: No
• Explosion-tested version: No
• For armoured cable: No
• Snapping in opening: No
• EMC-version: No
• Screened: No
• With strain relief: Yes
• Locknut included: Yes
• Bend radius protection/trumpet flare: No
• Flat cable sealing: No
• Glass fibre reinforced: No
• Shock resistant: Yes
• Suitable for cable outer diameter: 5 - 10 mm
• Colour: Light grey
• Hexagon angular dimension: 19 mm
• Nominal thread size metric/PG: 16
• RAL number: 7035
• Pitch thread: 1.5 mm
• Thread length: 15 mm
• Wrench width: 19 mm
• Type of sealing: Sealing ring
• For ATEX classification, Ex-zone gas: None
• For ATEX classification, Ex-zone dust: None
• Degree of protection (IP rating): IP68
• Thread type: Metric
• Material qualifier: Polyamide (PA)
• Material: Plastic
• Model: Straight
