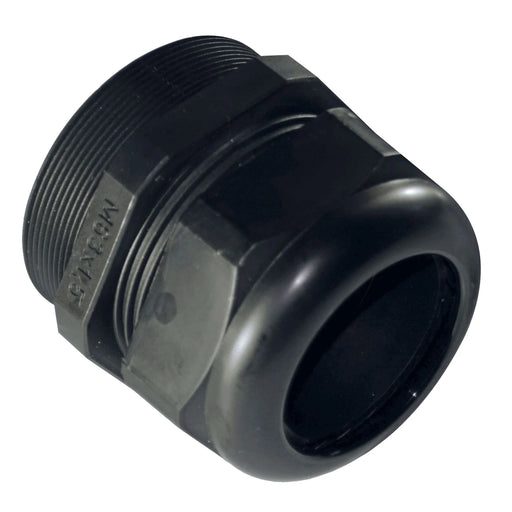

M32X1.5 Polyamide Pa6.6 Extended Thread Cable Gland Black
Original price
£2.90
-
Original price
£2.90
Original price
£2.90
£2.90
-
£2.90
Current price
£2.90
excl. VAT
💳 0% APR Finance Available*
- Description
- Technical Specifications
The M32x1.5 Polyamide PA6.6 Extended Thread Cable Gland is a durable and reliable solution for securing cables in various applications. Made from high-quality polyamide PA6.6, this cable gland features excellent self-extinguishing properties and operates efficiently in a wide temperature range. Its IP68 protection ensures superior resistance to dust and water, making it ideal for demanding environments. The metric thread design and sleek black finish (RAL 9005) ensure compatibility and aesthetic appeal.
Download Product Technical Data Sheet
- Working temperature: -40 - 100 °C
- Locknut included: No
- EMC-version: No
- Snapping in opening: No
- For armoured cable: No
- Multi cable sealing: No
- Flat cable sealing: No
- Separable (split) screw gland: No
- Screened: No
- Bend radius protection/trumpet flare: No
- Explosion-tested version: No
- With strain relief: Yes
- Glass fibre reinforced: No
- Shock resistant: Yes
- Halogen free: No
- Suitable for cable outer diameter: 13 - 21 mm
- Colour: Black
- RAL number: 9005
- Wrench width: 36 mm
- Pitch thread: 1.5 mm
- Hexagon angular dimension: 36 mm
- Nominal thread size metric/PG: 32
- Thread length: 15 mm
- For ATEX classification, Ex-zone dust: None
- For ATEX classification, Ex-zone gas: None
- Degree of protection (IP rating): IP68
- Material qualifier: Polyamide (PA)
- Material: Plastic
- Thread type: Metric
- Type of sealing: Sealing ring
- Model: Straight
