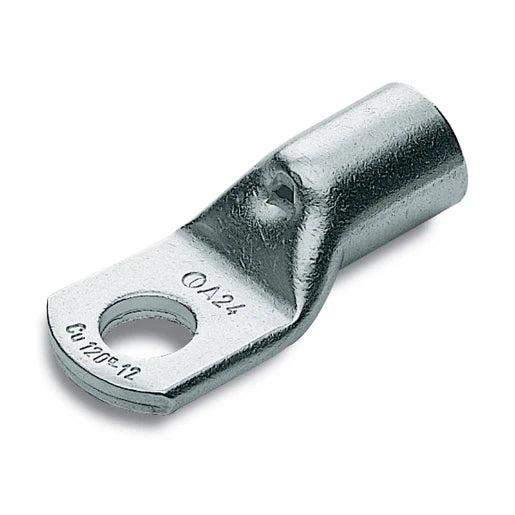

120mm² M10 Copper Tube Lug

The 120mm² Copper Tube Crimping Lug is engineered for reliable electrical connections in demanding environments. It combines superior material quality with robust design features to ensure optimal performance.

• Material Excellence: Manufactured from electrolytic copper tube with a purity greater than 99.9%, ensuring high conductivity and durability.
• Surface Protection: Electrolytically tin-plated to prevent oxidation and ensure long-term performance in various conditions.
• Enhanced Ductility: Annealed to provide optimum ductility, allowing for easier crimping and secure connections.
• Temperature Range: Operates effectively across a wide temperature range of -50°C to +150°C, making it suitable for extreme conditions.
• Voltage Rating: Rated for a maximum voltage of 11kV, ideal for high-voltage applications.
• Design Features: Includes an insulation sleeve to facilitate the easy introduction of the conductor. The ring shape flange and 180° connecting angle offer a secure and stable connection.
• Bolt Dimension: Designed for M10 studs, providing compatibility with standard mounting hardware.

Technical Specification

Download Product Technical Data Sheet

• Nominal Cross Section: 120 mm²
• Surface Protection: Tinned
• Material: Copper
• Flange Shape: Ring shape
• Connecting Angle: 180° (horizontal)
• Number of Fixing Holes: 1
• Bolt Dimension (Metric): 10
• Insulated: No
