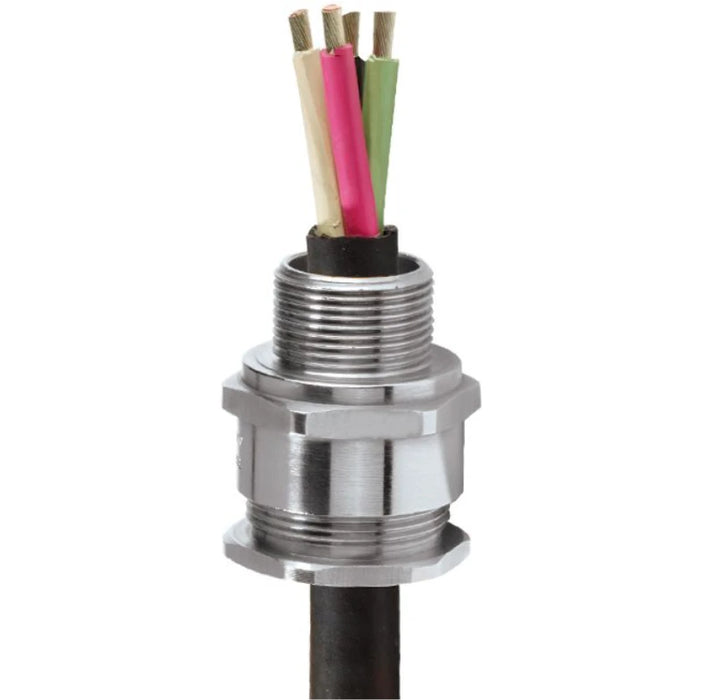

20mm Brass A2F Explosive Atmosphere PVC05 Shroud Cable Gland

The A2F cable gland is globally approved for use in explosive atmospheres, offering a secure and reliable connection for all types of unarmoured and braided cables. With a unique displacement-type flameproof seal, this gland ensures protection in hazardous environments.

• Flameproof Seal: Displacement-type flameproof seal that provides superior protection in explosive atmospheres.
• Deluge Protected: Designed for use in areas subject to deluge or water spray.
• Temperature Range: Operating temperature from -60°C to +130°C, suitable for extreme conditions.
• Compliance: Globally approved with IECEx, ATEX, and CSA certifications.
• Cable Types: Suitable for unarmoured and braided cables when terminated inside an enclosure.
• Sealing Technique: Features CMP's unique displacement seal concept, providing enhanced sealing performance.
• Material Options: Available in brass, electroless nickel-plated brass, stainless steel, and aluminium for different environmental requirements.
• Standards: Compliant with EN 60079-0,1,7,15,31 standards for safety in explosive atmospheres.

Technical Specifications

Download Product Technical Data Sheet

• Nominal Thread Size: M20
• Explosion-Tested: Yes
• Shock Resistant: Yes
• Suitable for Cable Outer Diameter: 6.5 - 14 mm
• Working Temperature: -60°C to +130°C
• Wrench Width: 27 mm
• Pitch Thread: 1.5 mm
• Thread Length: 15 mm
• Hexagon Angular Dimension: 29.7 mm

This cable gland is ideal for applications where high safety standards are required in explosive environments, offering both physical and environmental protection.
