3 way lever Push Wire Connector Biz'Wing mini 2.5 0.2-2.5 mm² (x 100)
excl. VAT
💳 0% APR Finance Available*

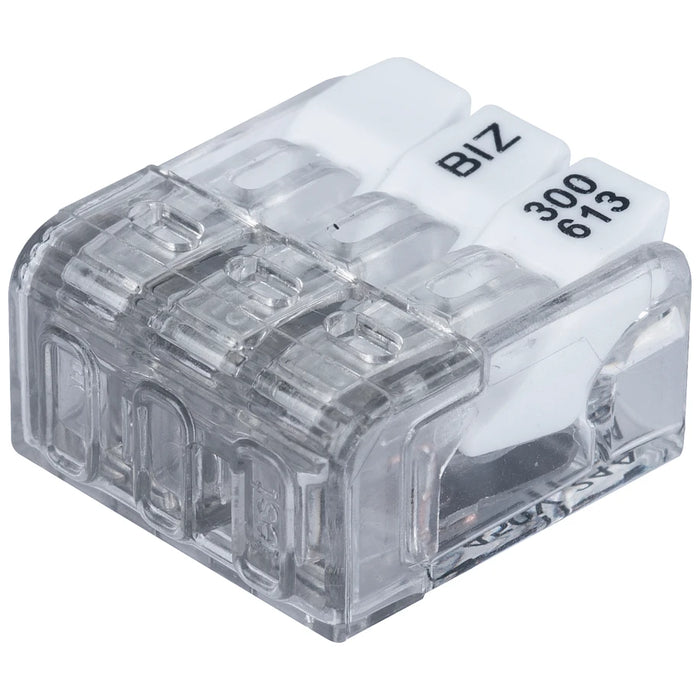

The Biz'Wing Mini 2.5 lever wire connector is an innovative solution designed to optimise electrical installations with its compact size and practical features. With a range of 0.2 to 2.5 mm² for wire insertion, this connector is ideal for both flexible and rigid wires. Its transparent polycarbonate body allows for easy wire insertion and inspection, while its ergonomic design ensures effortless operation. The connector is capable of handling up to 24 A of current and withstands temperatures up to 85 °C. Featuring a glow wire resistance of 850 °C and a built-in test point, the Biz'Wing Mini offers reliability and efficiency for your wiring needs.
Technical Specifications
Download Product Technical Data Sheet
- Type: Push-in Terminal
- Colour: White
- Nominal Current: 24 A
- Number of Clamp Positions: 3
- Nominal Voltage: 450 V
- Nominal Cross Section: 0.2 - 2.5 mm²
- Cable Diameter: 0.5 - 1.78 mm
- Conductor Cross Section (Solid/Stranded): 0.2 - 2.5 mm²
- Conductor Cross Section (Flexible/Fine-Strand with Cable End Sleeve): 0.2 - 2.5 mm²
- Material: Polycarbonate
- Strip Off Length: 11 mm
- Transparent: Yes
- With Operation Lever: Yes
- Suitable for Flexible Core: Yes
- Suitable for Multi-Wire Core: Yes
This Biz'Wing Mini connector is perfect for those seeking a reliable, space-saving solution that combines flexibility, ease of use, and high performance.
