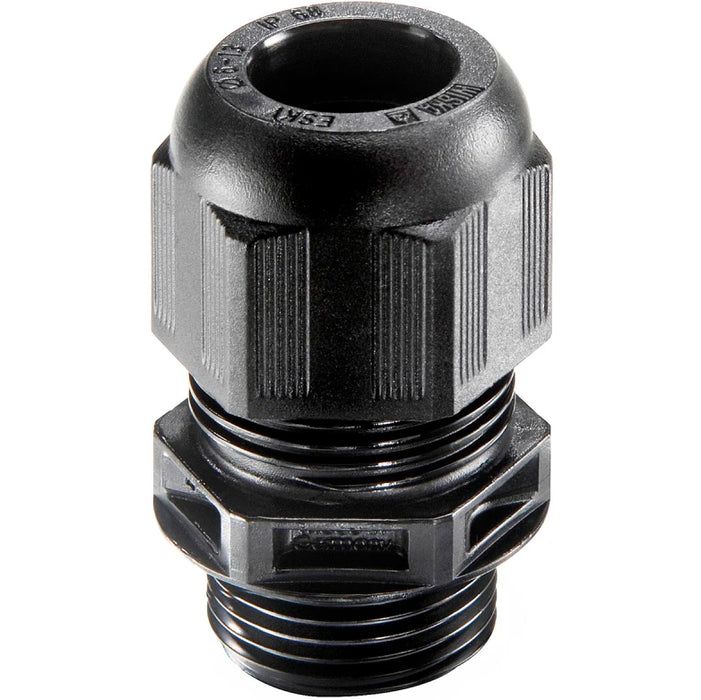

Cable Gland Eskv25 M25 Black Polyamide IP69 IP68 (5 Bar 30 Min)

The Wiska UK 10066123 SPRINT Cable Gland ESKV25 is a flameproof cable gland made from durable black polyamide. Designed for reliable performance, this gland features an ingress protection rating of IP68 (5 bar for 30 minutes) and IP69, making it suitable for harsh environments. Ideal for various applications, it is rated for use with temperatures as low as -60 °C.

• Product: Gland
• Type: Flameproof
• Pack Quantity: 50
• Ingress Protection: IP68
• Gland Material: Polyamide
• Gland Colour: Black
• Gland Size: M25 mm
• Standards: EN50262, EN 60695-2-11, UL (Canada and US), VDE
• Suitable for use in temperatures down to -60 °C
• IP68 (5 bar for 30 minutes) / IP69K

Technical Specifications

Download Product Technical Data Sheet

Cable gland
Shock resistant: Yes
Locknut included: No
Multi cable sealing: No
EMC version: No
Flat cable sealing: No
Bend radius protection/trumpet flare: No
For armoured cable: No
Snapping in opening: No
Separable (split) screw gland: No
With strain relief: Yes
Glass fibre reinforced: No

Hexagon angular dimension: 32 mm
Screened: No
Explosion-tested version: No
Halogen free: Yes
Suitable for cable outer diameter: 9 - 17 mm
Working temperature: -40 - 100 °C
RAL number: 9005
Wrench width: 29 mm
Pitch thread: 1.5 mm
Thread length: 10 mm
Nominal thread size metric/PG: 25
