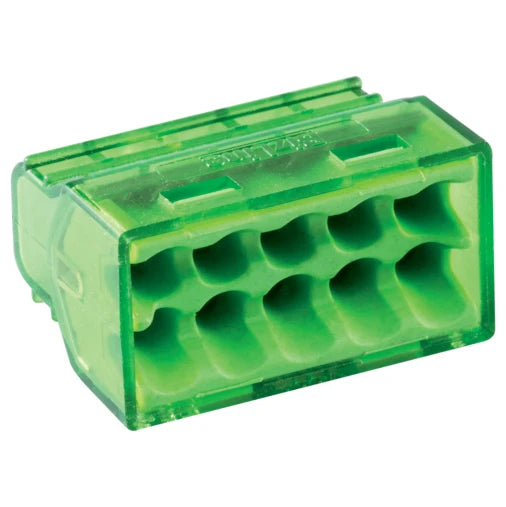

Christa'l Mini Push-in Wire Connector 10 Way 24A for upto 2.5mm Cables - Green - Pack of 100
excl. VAT
💳 0% APR Finance Available*
The CHRISTA'L MINI terminal block is designed for rigid wires with cross sections ranging from 1.5 to 2.5 mm². It supports a voltage rating of 400 V and a current rating of 24 A, making it suitable for various electrical applications. Each terminal block features a 12 mm strip and a test point, allowing for quick verification of proper connections. Compliant with French standards, it ensures safety and reliability.
Constructed with self-extinguishing V0 approved materials, these automatic connection terminals undergo rigorous testing, including a glow wire test at 960 °C for less than 5 seconds (NF EN 60 998-2-2). The operating temperature range of -25 °C to +50 °C ensures versatility in diverse environments.
Technical Specifications
Download Product Technical Data Sheet
- Push in terminal
- Colour: Green
- Number of clamp positions: 10
- Nominal current: 24 A
- Nominal voltage: 400 V
- Conductor cross section solid (solid, stranded): 0 - 0.25 mm²
- Cable diameter: 0 - 2 mm
- Nominal cross section: 0 - 2.5 mm²
- Transparent: No
- With operation lever: No
- Suitable for flexible core: No
- Suitable for multi-wire core: No
