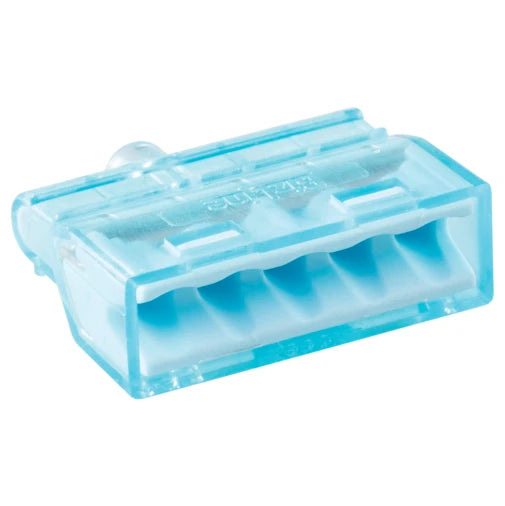

Christa'l Mini Push-in Wire Connector 5 Way 24A for upto 2.5mm Cables - Blue - Pack of 100

The CHRISTA'L MINI 5-input terminal block is designed for connecting rigid wires ranging from 1.5 to 2.5 mm². It operates at 400 V with a current rating of 24 A. Featuring a 12 mm strip and test point for easy connection verification, this terminal block ensures safe and efficient installations. Compliant with French standards, it is made from durable polycarbonate and polyamide materials, and the terminals are self-extinguishing, V0 approved. It also passes the glow wire test at 960°C for less than 5 seconds.

Technical Specifications

Download Product Technical Data Sheet

• Push-in terminal

• Colour: Yellow

• Nominal Voltage: 400 V

• Nominal Current: 24 A

• Number of Clamp Positions: 5

• Nominal Cross Section: 1.5 - 2.5 mm²

• Cable Diameter: 1.5 - 2.5 mm

• Conductor Cross Section Solid (Solid, Stranded): 1.5 - 2.5 mm²

• Conductor Cross Section Flexible (Fine-strand) with Cable End Sleeve: - mm²

• Transparent: No

• With Operation Lever: No

• Suitable for Flexible Core: No

• Suitable for Multi-wire Core: No
