Christa'l Push-in Wire Connector 2 Way 24A for upto 2.5mm Cables - Purple - Pack of 100
excl. VAT
💳 0% APR Finance Available*
- Description
- Technical Specifications

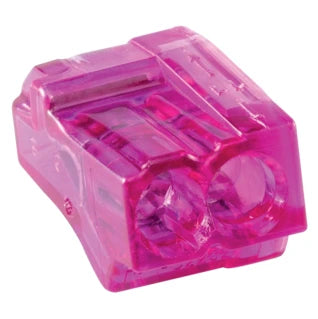

The CHRISTA'L MINI 2-input terminal block is designed for use with rigid wires ranging from 0.5 mm² to 2.5 mm². Ideal for secure and efficient electrical connections, it operates at a maximum voltage of 450 V and supports currents up to 24 A. The terminal block includes an 11-mm strip and a test point, allowing for quick verification of proper connections. Built with self-extinguishing V0-approved materials, it adheres to strict safety standards, including a glow wire test at 960 °C. Constructed with a polycarbonate coloured body and a durable polyamide 6.6 white door, it is suitable for a range of applications in demanding environments.
Download Product Technical Data Sheet
- Type: Push-in terminal
- Nominal current: 24 A
- Nominal voltage: 450 V
- Cable diameter: 2.5 - 2.5 mm
- Conductor cross section (solid, stranded): 0.5 - 2.5 mm²
- Material: Polycarbonate body, Polyamide 6.6 door
- Operating temperature range: -30 °C to +105 °C
- Self-extinguishing: Yes, V0 approved
- Glow wire test: 960 °C < 5 s (NF EN 60 998-2-2)
This compact and reliable terminal block ensures safe and efficient connections for rigid wiring needs.
