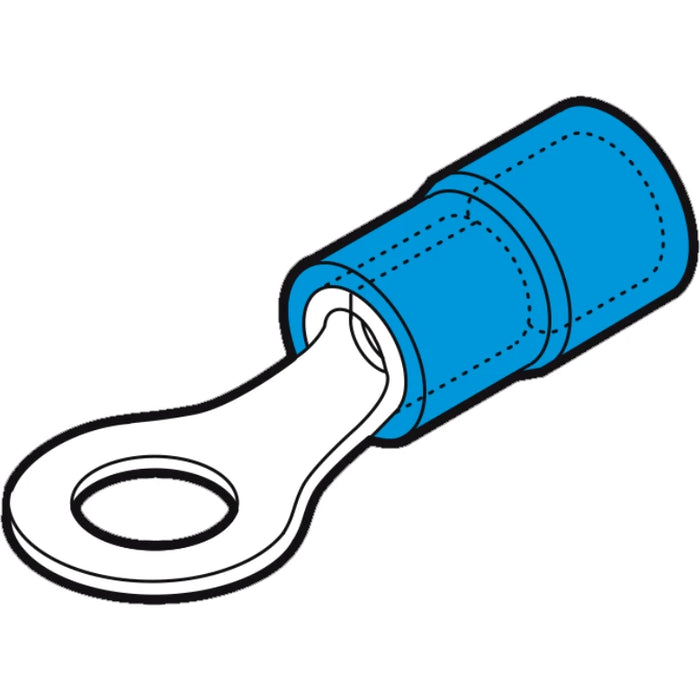

Ring Terminal Blue

The 1.5mm²-2.5mm² PVC insulated ring terminal M12 stud in blue is designed for reliable electrical connections. With a temperature range of -20°C to +80°C, this terminal is suitable for various applications. Manufactured from electrolytic copper wire with a purity greater than 99.9%, it is electrolytically tin-plated to prevent oxidation and is annealed to ensure optimum ductility. The terminal features a hole/stud size of 12 mm and a tab/pin size of 24.5 mm, facilitating easy insertion of the conductor.

Technical Specifications

Download Product Technical Data Sheet

• Type: Solderless copper terminals for copper conductors
• Nominal cross section: 1.5 - 2.5 mm²
• Suitable for flat conductors: No
• Suitable for insulated varnish: No
• Suitable for round conductors: Yes
• Useful for stranded conductors: Yes
• Suitable for solid cores: No
• Suitable for fine strand conductors: No
• Suitable for high temperatures (to 650 °C): No
• For pull protected connections: No
• Reel packaging: No
• Surface protection: Tinned
• Max. current (Imax): - A
• Bolt dimension (metric): 12
• Stud size (imperial): 12
• Material: Copper
• Sleeve form: Short
• Colour insulation: Blue
• Flange shape: Ring shape
• Insulation: Polyvinyl chloride (PVC)
