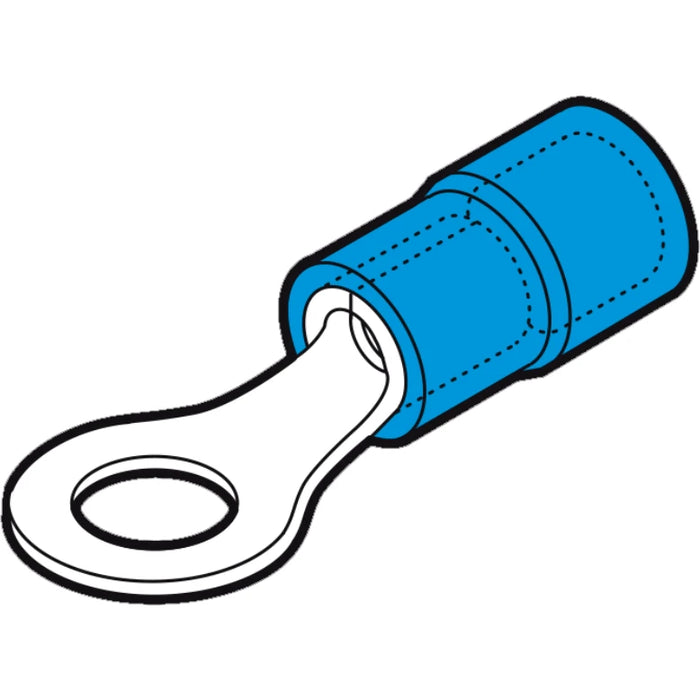

Ring Terminal Blue

The 1.5mm²-2.5mm² PVC Insulated Ring Terminal is designed for secure connections in various electrical applications. This terminal features high-quality PVC insulation, providing excellent protection against environmental factors. Manufactured from electrolytic copper wire with a purity greater than 99.9%, it ensures superior conductivity. The terminal is electroplated with tin to prevent oxidation and is designed for easy conductor insertion, making installation straightforward and reliable.

Technical Specifications

Download Product Technical Data Sheet

• Type: Solderless copper terminals for copper conductors
• Surface protection: Tinned
• Nominal cross section: 1.5 - 2.5 mm²
• Material: Copper
• Bolt dimension (metric): 8
• Flange shape: Ring shape
• Diameter: 4.9 mm
• Length Min Max: 26.4 mm
• Insulation: Polyvinyl chloride (PVC)
• Colour insulation: Blue
• Operating temperature range: -20°C to +80°C
• Max. current (Imax): Not specified
• Suitable for solid cores: No
• Suitable for fine strand conductors: No
• Useful for stranded conductors: Yes
• Suitable for round conductors: Yes
• Suitable for flat conductors: No
• Suitable for insulated varnish: No
• For pull protected connections: No
• CE Approved: Yes
• Standards: UL (Canada and US) UL 498A, EN 1652
