Terminal Blocks 16 mm² Black Polypropylene (x 10)
Original price
£24.59
-
Original price
£24.59
Original price
£24.59
£24.59
-
£24.59
Current price
£24.59
excl. VAT
💳 0% APR Finance Available*
- Description
- Technical Specifications

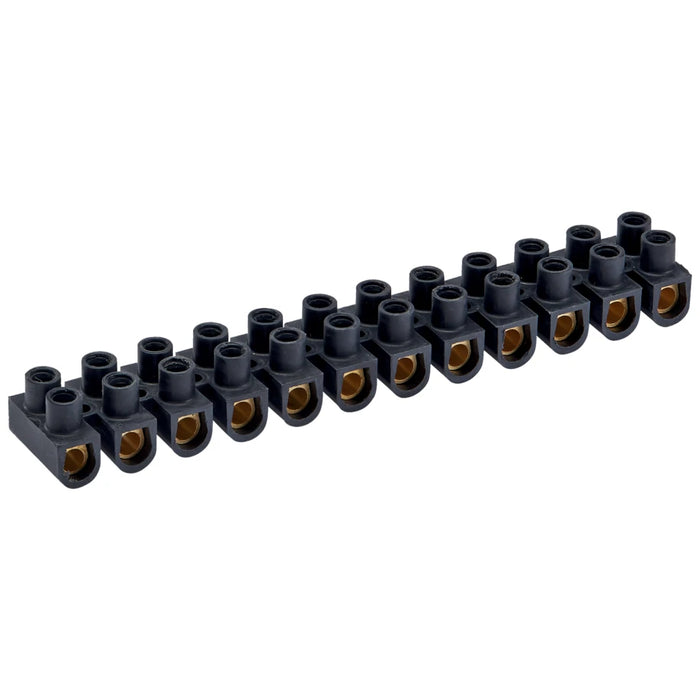

These 12-way black polypropylene terminal blocks offer a highly flexible and reliable solution for connecting electrical circuits. Designed for versatility, they can be easily separated with just 1.5 turns without requiring any tools, making installation quick and simple. Supplied with screws already engaged at 1/3, these terminal blocks are NF compliant and provide excellent performance. With a rated voltage of 400V and a current rating of 57A, they are ideal for a wide range of applications requiring secure and robust connections.
Download Product Technical Data Sheet
- Single- and multi-pole terminal strip
- Colour: Black
- Number of poles: 12
- Rated voltage: 400V
- Rated current In: 57A
- Number of clamp positions per pole: 2
- Drill hole distance centrically: 13 mm
- Type of electrical connection 1: Screw connection
- Type of electrical connection 2: Screw connection
- Material insulation body: Thermoplastic
- Connectable conductor cross section solid-core: 0 - 16 mm²
- Connectable conductor cross section fine-strand without cable end sleeve: 0 - 16 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 0 - 10 mm²
- Connectable conductor cross section multi-wired: 0 - 16 mm²
- Operating temperature: -25 - 40°C
- Glow wire test: 960°C
- Halogen free: No
- Transparent: No
- Explosion-tested version 'Ex e': No
- Closing plate required: No
