External IP44 180 Degree PIR Detector
excl. VAT
💳 0% APR Finance Available*
- Description
- Technical Specifications

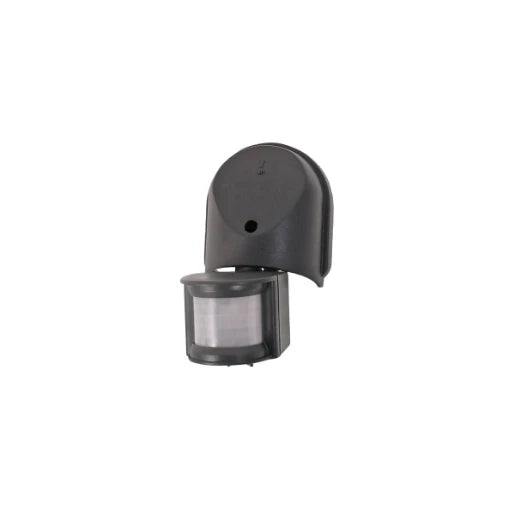

The Eterna PIR180BK is a high-performance external PIR motion detector designed for security and lighting control. With a wide 180-degree detection zone and a range of up to 12 meters, it provides reliable motion detection for outdoor areas. This versatile sensor is suitable for a variety of lighting applications, including up to 1300W tungsten, 300W fluorescent, or 200W LED (no more than eight LED fittings). It features adjustable vertical and horizontal detectors, as well as an adjustable lux level for precise control over activation based on ambient light.
-
Download Product Technical Data Sheet
-
Download Product Technical Data Sheet
- Detection Zone: 180 degrees
- Range: 12 meters
-
Maximum Load:
- 1300W tungsten
- 300W fluorescent
- 200W LED (up to eight LED fittings)
- Adjustable Settings: Vertical & horizontal detectors, adjustable lux level
- IP Rating: IP44, suitable for outdoor use
- Material: Plastic
- Mounting Method: Surface mounted
- Colour: Black
-
Dimensions:
- Depth: 130 mm
- Height: 150 mm
This Eterna PIR180BK motion detector is ideal for outdoor security lighting, providing a reliable, energy-efficient solution for activating lights only when needed, based on motion and light conditions.
