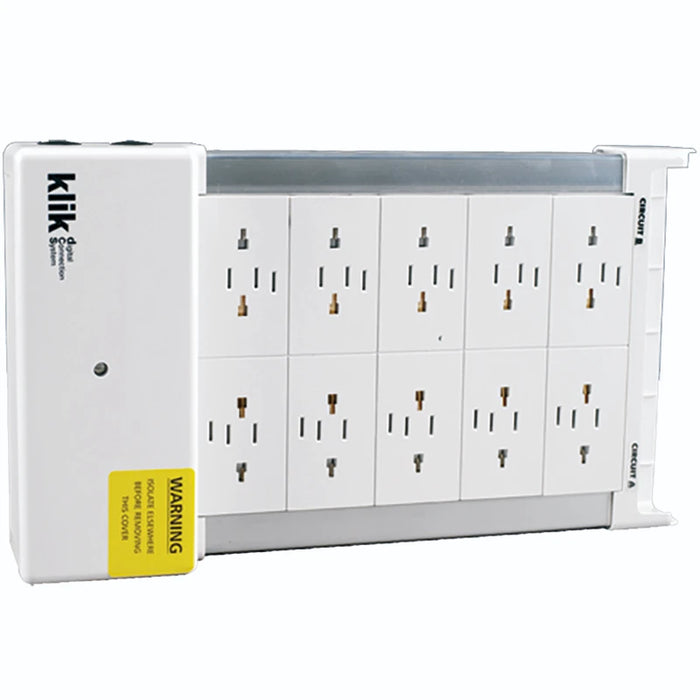

Klik Marshalling Box 10 Way 4 Pole Lighting Distribution unit 16A White
excl. VAT
💳 0% APR Finance Available*
- Description
- Technical Specifications
The Klik Marshalling Box 10 Way 4 Pole Lighting Distribution Unit 16A White (KLDS10) is a highly efficient and time-saving solution for your lighting circuit installations. Designed to simplify the process of wiring and connecting lighting systems, this robust lighting distribution box offers a secure and reliable connection for various commercial and residential lighting applications.
With 10 ways for connecting, the KLDS10 allows for flexible and straightforward installation. The main terminals are rated at 16A, ensuring high-capacity support for your lighting setup, while each socket outlet is rated at 6A. The flexible conductor terminals support up to 10A, providing versatility for different wiring configurations. The terminals can accommodate a 5 x 4mm² cable for the main terminals and a 1 x 1mm² cable for flexible conductors, allowing for easy and secure connections.
The Klik Marshalling Box accepts Klik lighting plugs (3-pin), Klik AX plugs (4-pin), and Klik pre-wired leads, ensuring compatibility with a variety of electrical setups. The cable entry points support both 20mm and 25mm conduit, making it versatile for various installations.
The Klik range, developed by Hager, is a secure lighting and control connection system that enables quick, safe, and reliable electrical and mechanical connections. With a single plug-in action, the system ensures seamless integration into your lighting circuits.
-
Download Product Technical Data Sheet
-
Download Product Technical Data Sheet
-
Download Product Technical Data Sheet
- Product Name: Klik Marshalling Box 10 Way 4 Pole Lighting Distribution Unit 16A White (KLDS10)
- Nominal Current: 16A
- Socket Outlet Rating: 6A per socket
- Main Terminal Capacity: 5 x 4mm²
- Flexible Conductor Terminal Capacity: 1 x 1mm²
- Colour: White
- Housing Shape: Rectangular
- Cable Entry: 20mm or 25mm conduit
- Compatible Plugs: Klik lighting plugs (3 Pin), Klik AX plugs (4 Pin), Klik pre-wired leads
- Maximum Load: 16A (main terminal), 6A (socket outlets), 10A (flexible conductors)
- On/Off Switch: No
- RCD Protected: No
Key Features
- 10-way lighting distribution box for easy and efficient installation
- 16A main terminal for high-capacity support
- 6A socket outlets for reliable lighting circuit connections
- Flexible conductor terminals rated at 10A for versatile configurations
- Quick and simple setup with Klik lighting plugs and pre-wired leads
- Cable entry points support 20mm or 25mm conduit for flexible installation
- Developed by Hager for safe, secure, and efficient lighting connections
This Klik Marshalling Box 10 Way 4 Pole Lighting Distribution Unit is the ideal choice for ensuring a secure, organized, and efficient connection system in lighting circuits. Perfect for both residential and commercial installations, it provides a hassle-free solution to streamline your electrical setup.
