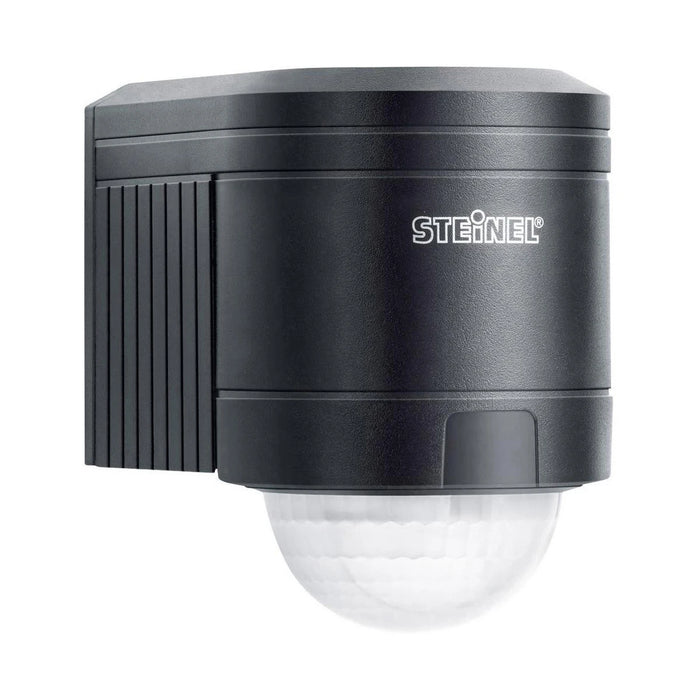

Sensor Is240 PIR Corner Bracket IP54 1000W 240° Black
excl. VAT
💳 0% APR Finance Available*
- Description
- Technical Specifications
The Sensor IS240 PIR Corner Bracket is a powerful motion detector designed for optimal security and energy efficiency. Perfect for monitoring large house fronts or external corners, this sensor features two highly sensitive infrared detectors that provide seamless protection over expansive areas of up to 230m². The innovative design allows it to cover two sides of a building when installed on external corners, eliminating the need for a second sensor. With a 240° angle of coverage and a range of up to 12m, this sensor is the ideal solution for wide-area monitoring. Equipped with an IP54 rating, it is fully weatherproof, making it reliable for use in outdoor environments. The IS240 PIR Corner Bracket ensures that your property is protected with the most advanced motion-sensing technology.
-
Download Product Technical Data Sheet
- Colour: Black
- Height: 90mm
- Width: 60mm
- Depth: 100mm
- Mounting Type: Wall
- Power Rating: 1,000W
- Voltage Rating: 230-240V
- Frequency: 50Hz
- PIR: Yes, with PIR sensor
- Detection Angle: 240°
- Coverage Area: Up to 12m
- IP Rating: IP54 (Weatherproof)
- Maximum Resistive Load: 1000W
- Optimum Mounting Height: 2m
- Maximum Reach Frontally: 12m
- Maximum Reach Sideways: 12m
- Response Value Luminosity: 2 - 2000 lux
- Switch-off Delay: 10 seconds
- Max Duty Cycle: 15 minutes
- Material: Thermoplastic, Plastic (Matt Finish)
- Creep-Under Protection: Yes
- Halogen Free: Yes
Key Features
- Dual infrared detectors for enhanced detection, ideal for large areas or external corners
- Reliable 240° coverage and up to 12m detection range
- Weatherproof IP54 rating for outdoor use
- Adjustable response value luminosity (2 - 2000 lux)
- Maximum switching power of 1000W for extensive lighting setups
- Quick installation with wall-mounted design
- Energy-saving and reliable security solution for your home or business
Enhance your property’s security with the IS240 PIR Corner Bracket motion detector, designed to provide extensive coverage with minimal installation. With its robust features and wide-angle detection, this sensor is perfect for securing large areas while minimizing the number of sensors required.
