Twilight Switch Electric Outdoor 2-2000Lux
excl. VAT
💳 0% APR Finance Available*
- Description
- Technical Specification

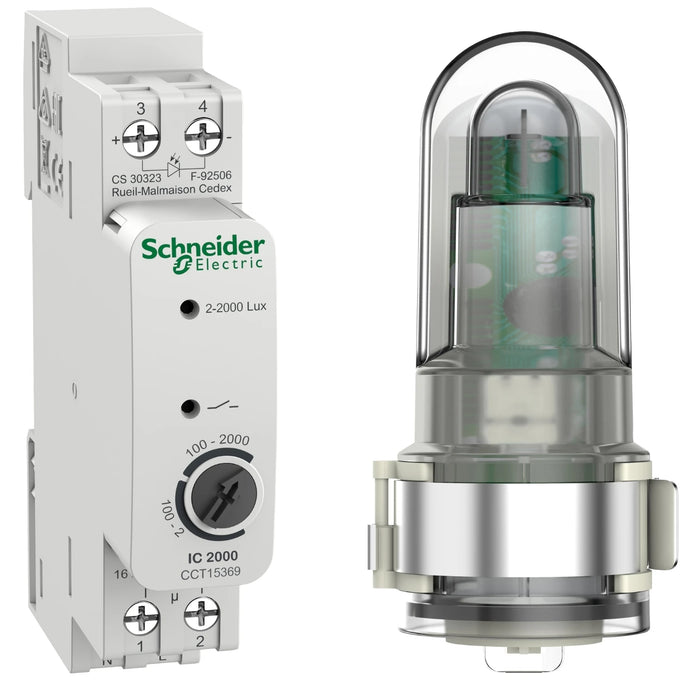

The IC2000D Outdoor Twilight Switch is a high-performance analogue switch designed to control outdoor lighting systems based on ambient light levels. This versatile device ensures that your lights automatically turn on when it gets dark and off when it gets light, offering convenience and energy savings for outdoor spaces such as gardens, streets, and parking lots.
The IC2000D features an adjustable brightness threshold ranging from 2 to 2000 lux, allowing you to tailor the sensor’s response to different lighting conditions. Its 18mm width (2 modules of 9mm) makes it a compact solution for installation within standard distribution boards. The switch is equipped with an outdoor wall-mounted sensor that provides accurate light level measurements, enabling precise control.
-
Download Product Technical Data Sheet
-
Download Product Technical Data Sheet
- IC2000 Analogue Twilight Switch: Automatically controls lighting based on the surrounding light levels.
- Adjustable Brightness Threshold: Choose a setting between 2 lux and 2000 lux to match your desired lighting conditions.
- Compact Design: 18mm width (2 modules of 9mm), ideal for easy integration into distribution boards.
- Outdoor Wall-Mounted Sensor: Provides accurate light detection for reliable performance.
- Rated Voltage: 230V
- Rated Frequency: 50-60 Hz
- Switch Current: 16A
- Max. Switching Current (cos phi = 0.6): 10A
-
Max. Load:
- Fluorescent Lamp (Duo Circuit): 2300VA
- Fluorescent Lamp (Parallel Compensated): 730VA
- Incandescent Lamp: 2600W
- Max. Conductor Length for Light Sensor: 50m
- Brightness Adjustment Range: 2 - 2000 lux
- Recess Depth: 67mm
- Push Button Input: No
- Programmable Overnight Shutoff: No
Benefits
- Energy-Efficient: Automates outdoor lighting to conserve energy by ensuring lights are only on when needed.
- Easy to Install: Comes with an outdoor wall-mounted sensor for effortless setup.
- Durable: Designed for outdoor use, built to withstand various weather conditions.
- Flexible Use: Ideal for controlling garden lights, street lamps, and other exterior lighting applications.
The IC2000D Outdoor Twilight Switch offers reliable and efficient lighting control for a variety of outdoor environments. Whether you need to control streetlights, security lights, or garden lighting, this switch ensures your system operates intelligently, saving you both time and energy. Order yours today for enhanced outdoor lighting control.
