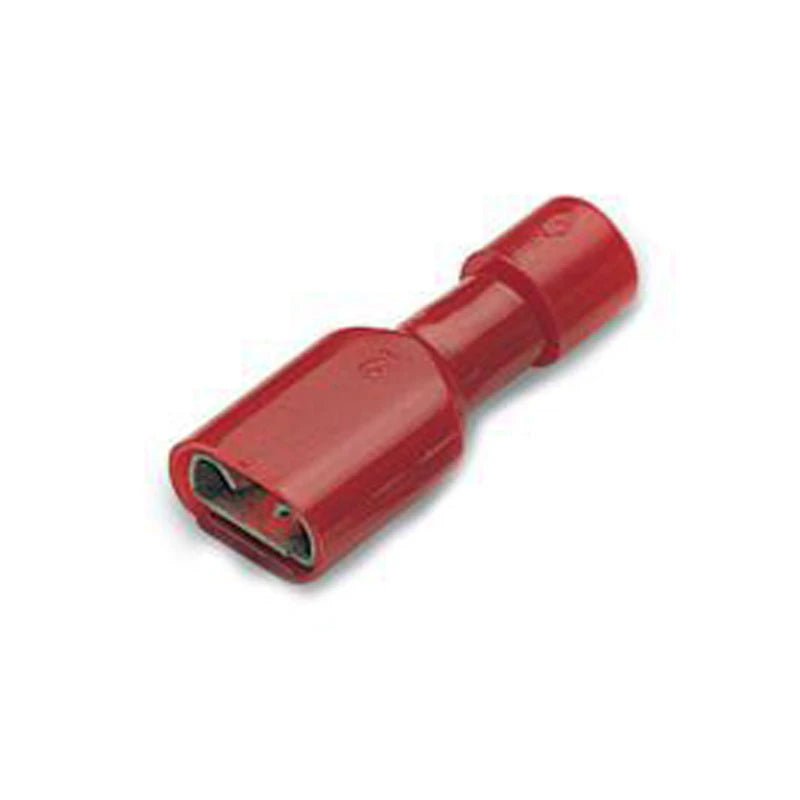

0.25-1.5mm² Fully Insulated Disconnect Terminal 6.35 X 0.8mm Red

This female disconnect terminal is designed for use with conductors ranging from 0.25mm² to 1.5mm². It features a fully polycarbonate insulation sleeve for durability and protection.

Technical Specifications

Download Product Technical Data Sheet

• Insulation Material: Polycarbonate
• Temperature Range: -20°C to +115°C
• Tab Size: 6.35mm x 0.8mm
• Colour of Insulation: Red
• Manufactured From: Brass strip with a purity greater than 99.9%
• Surface Protection: Electrolytically tin-plated to prevent oxidation
• Halogen-Free: Yes
• Conductor Introduction: Facilitated
• Nominal Cross Section: 0.25 - 1.5mm²
• Suitable for Round Conductors: No
• Insulation Type: Polyvinyl chloride (PVC)
• Sleeve Form: Long
