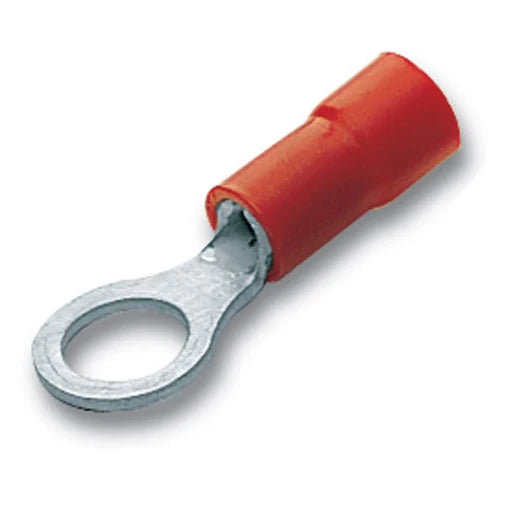

0.25-1.5mm² Pre-Insulated Ring Terminal M6 Stud Red

This red PVC insulated ring terminal is designed to provide a secure and reliable electrical connection for conductors within the range of 0.25mm² to 1.5mm². Ideal for use in various electrical and electronic applications, it ensures durability and ease of installation.

• Material Quality: Constructed from electrolytic copper wire with a purity greater than 99.9%, ensuring excellent electrical conductivity and reliability.
• Surface Protection: Electrolytically tin-plated to prevent oxidation and enhance longevity.
• Annealed Copper: Annealed to guarantee optimum ductility, allowing for easy crimping and secure connections.
• Temperature Range: Suitable for use in environments with temperatures ranging from -20°C to +80°C.
• Insulation: PVC insulation provides effective protection and durability while facilitating easy introduction of the conductor.
• Design: Features a short sleeve form for a compact and efficient connection, and is specifically designed for M6 studs.

Technical Specifications

Download Product Technical Data Sheet

• Insulation Material: Polyvinyl chloride (PVC)
• Insulation Colour: Red
• Material: Copper
• Sleeve Form: Short
• Bolt Dimension (Metric): 6
• Nominal Cross Section: 0.25 - 1.5 mm²
