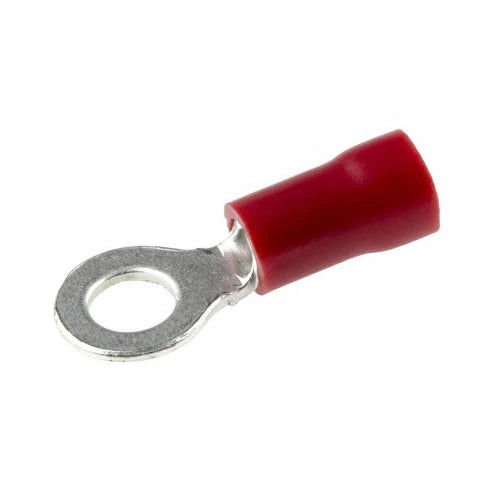

0.25mm²-1.5mm² ring terminal M8 red [Pack of 100]

This PVC insulated ring terminal is designed for use with copper conductors, offering a reliable and secure connection. It features a temperature range of -20°C to +80°C and is manufactured from electrolytic copper wire with a purity greater than 99.9%. The terminal is electroplated with tin to prevent oxidation and is annealed to ensure optimum ductility. Its short sleeve form ensures easy insertion of the conductor, making installation straightforward.

Technical Specifications

Download Product Technical Data Sheet

• Material: Copper
• Insulation: Polyvinyl chloride (PVC)
• Colour Insulation: Red
• Surface Protection: Tinned
• Nominal Cross Section: 0.25 - 1.5 mm²
• Bolt Dimension (Metric): 8 mm
• Sleeve Form: Short
• Flange Shape: Ring shape
• Working Temperature Range: -20°C to +80°C
• Suitable for:
  • Stranded conductors
  • Round conductors
  • Fine strand conductors
• For Pull Protected Connections: No
• Reel Packaging: No
