150mm² Copper lug flexible M12 [Pack of 25]

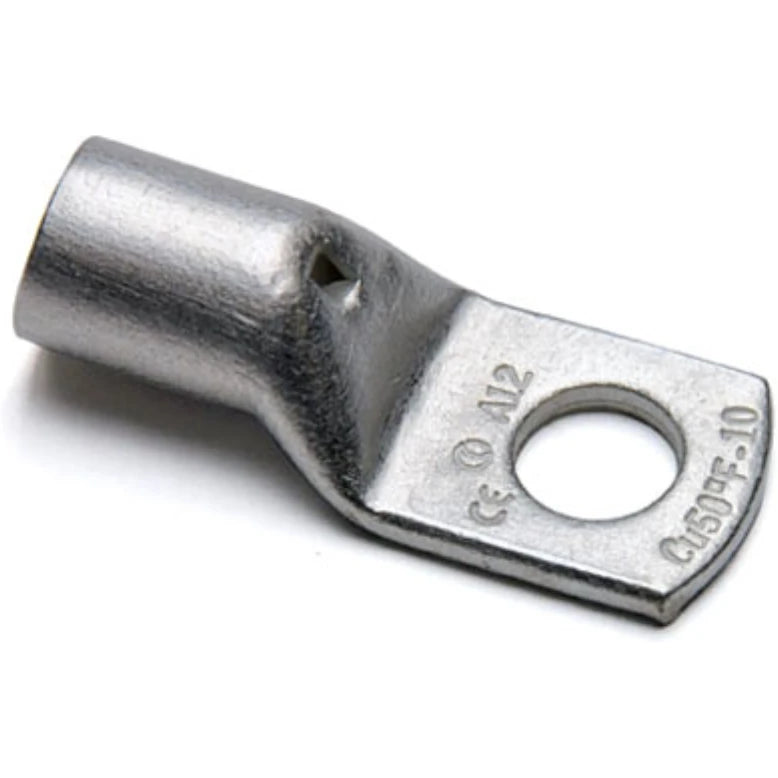

This copper tube crimping lug is designed for extra flexible copper conductors and provides a reliable and durable connection in high-performance electrical systems. It features a ring-shaped flange and is suitable for use with M12 studs. The lug is made from electrolytic copper with a purity greater than 99.9% and is electroplated with tin to prevent oxidation. The operating temperature range is between -50°C and +150°C, and the maximum voltage rating is 11kV.

Technical Specifications

Download Product Technical Data Sheet

• Flange shape: Ring shape
• Surface protection: Tinned
• Connecting angle: 180° (horizontal)
• Material: Copper
• AWG size: 300 kcmil
• Bolt dimension (metric): 12
• Number of fixing holes: 1
• Nominal cross section: 150 mm²
• Insulated: No
• With sight-hole: Yes
• Slender flange model: No
