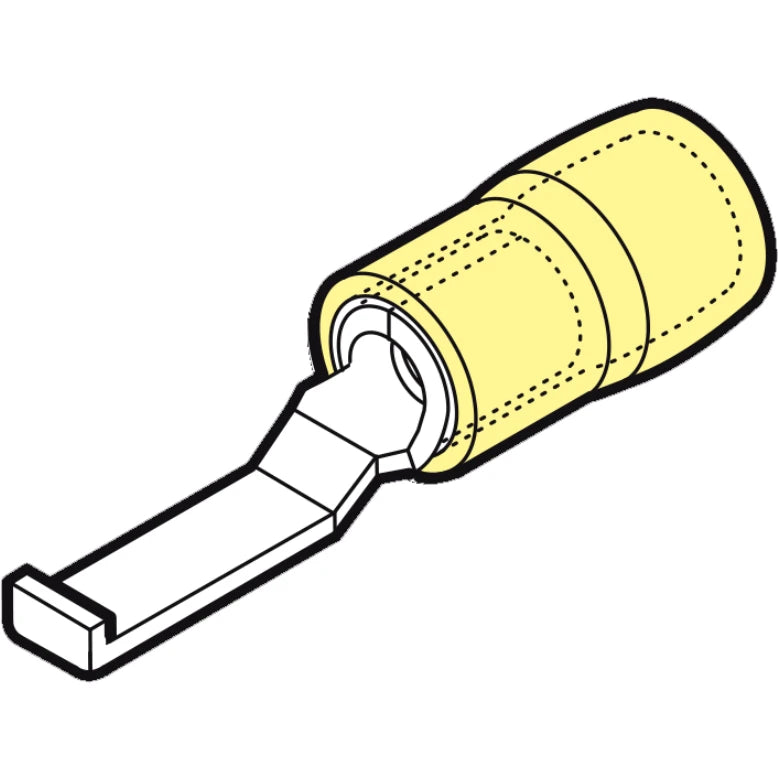

4mm²-6mm² Reinforced Polyamide Pa6.6 Insulated Hooked Blade Terminal 4.6mm X 17.2mm Blade Size Yellow
Original price
£0.52
-
Original price
£0.52
Original price
£0.52
£0.52
-
£0.52
Current price
£0.52
excl. VAT
💳 0% APR Finance Available*
Area Required
Include Extra
%
Waste
The 4mm²-6mm² Reinforced Polyamide PA6.6 insulated hooked blade terminal is a robust and reliable solution for electrical connections. Featuring a 4.6mm x 17.2mm blade size, it is designed for optimal performance and durability. The insulation sleeve is made of Nylon PA6.6, providing excellent resistance to temperatures ranging from -20°C to +115°C. Manufactured from high-purity brass strip (99.9%) and electro-tin plated, this terminal resists oxidisation and ensures secure connections. The terminal is halogen-free and designed for easy conductor insertion, making it a practical choice for a variety of applications.
Technical Specifications
Download Product Technical Data Sheet
- Type: Solderless copper terminals for copper conductors
- Suitable for insulated varnish: No
- Suitable for solid cores: No
- Useful for stranded conductors: Yes
- Suitable for round conductors: Yes
- Suitable for flat conductors: No
- For pull-protected connections: No
- Reel packaging: No
- Suitable for fine strand conductors: Yes
- Suitable for high temperatures (to 650 °C): No
- Insulation: PA
- Nominal cross section: 4 - 6 mm²
- Bolt dimension (metric): -
- Max. current (Imax): - A
- Sleeve form: Short
- Colour insulation: Yellow
- Material: Copper
- Flange shape: Pin shape
- Surface protection: Tinned
