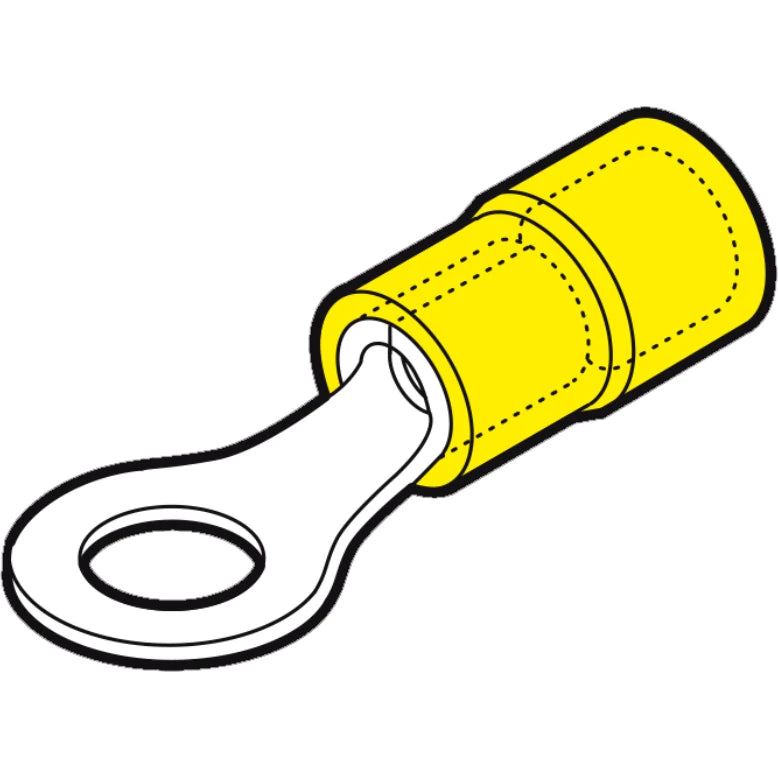

4mm²-6mm² ring terminal M4 yellow [Pack of 100]

This PVC-insulated ring terminal is engineered for reliable electrical connections in a range of applications. Manufactured from high-purity electrolytic copper exceeding 99.9%, it ensures excellent conductivity and performance. Tin plating prevents oxidisation, and the annealed material guarantees optimum ductility for ease of use. Designed with a short sleeve form, it facilitates easy conductor insertion. Operating within a temperature range of -20°C to +80°C, the terminal meets stringent standards, including UL (Canada and US) UL 498A and EN 1652.

Technical Specifications

Download Product Technical Data Sheet

• Product Type: Solderless copper terminal for copper conductors
• Material: Copper
• Surface Protection: Tinned
• Insulation Material: Polyvinyl chloride (PVC)
• Nominal Cross Section: 4 - 6 mm²
• Flange Shape: Ring shape
• Bolt Dimension (Metric): 4
• Sleeve Form: Short
• Colour Insulation: Yellow
• Diameter: 6.7 mm
• Length (Min-Max): 26.8 mm
• Standards: UL (Canada and US) UL 498A, EN 1652
• Temperature Range: -20°C to +80°C
• Suitable For:
  • Round conductors: Yes
  • Stranded conductors: Yes
  • Fine strand conductors: No
  • Solid cores: No
  • Flat conductors: No
  • Insulated varnish: No
  • High temperatures (to 650 °C): No
  • Pull-protected connections: No
