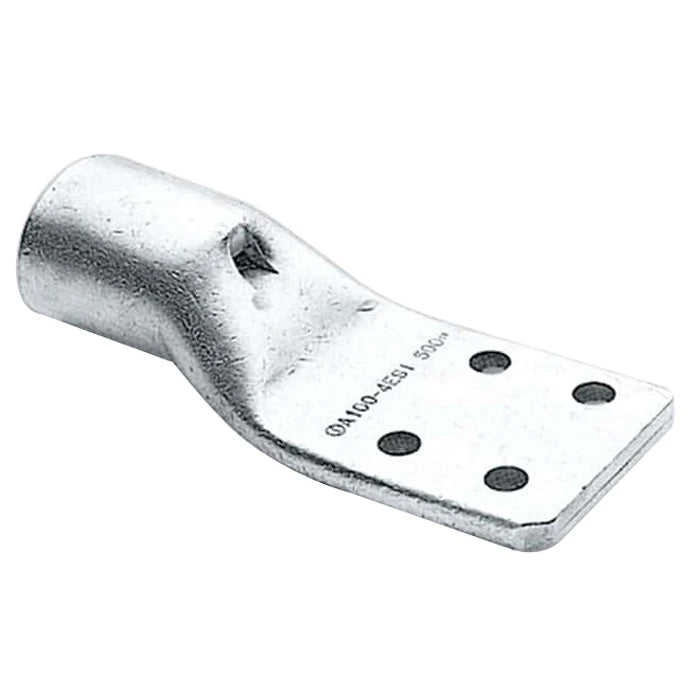

500mm² Copper lug 4-ESI fixing [Pack of 5]

This copper tube crimping lug is designed for high-voltage applications, with a maximum voltage rating of 11kV. Manufactured from high-purity electrolytic copper, it is annealed for optimal ductility and tinned to prevent oxidation. The lug features a special flange shape and four fixing holes, ensuring secure installation according to EA specifications. It is suitable for conductors with a cross-section of 500mm² and offers a wide temperature range from -50°C to +150°C.

Technical Specifications

Download Product Technical Data Sheet

• Surface protection: Tinned
• Flange shape: Special shape
• Connecting angle: 180° (horizontal)
• Material: Copper
• Number of fixing holes: 4
• Bolt dimension (metric): 8
• Nominal cross section: 500 mm²
• Slender flange model: No
• With sight-hole: Yes
• Insulated: No
