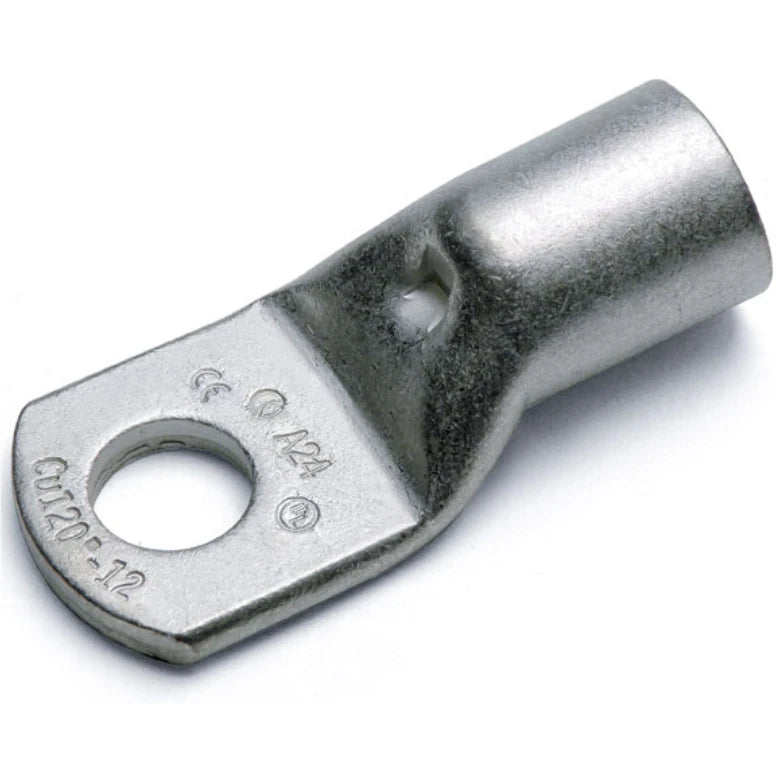

500mm² Copper lug M12 stud [Pack of 1]
Original price
£32.45
-
Original price
£32.45
Original price
£32.45
£32.45
-
£32.45
Current price
£32.45
excl. VAT
💳 0% APR Finance Available*
Area Required
Include Extra
%
Waste
The 500mm² Copper tube crimping lug with an M12 stud is designed for high-performance electrical connections. It features an annealed construction for optimal ductility and a smooth insulation sleeve form for easy conductor insertion. This lug is manufactured from electrolytic copper with a purity exceeding 99.9% and is tin-plated to prevent oxidisation. With a maximum voltage rating of 11kV and an operating temperature range of -50°C to +150°C, it is suitable for demanding environments.
Technical Specifications
Download Product Technical Data Sheet
- Surface protection: Tinned
- Flange shape: Ring shape
- Connecting angle: 180° (horizontal)
- Material: Copper
- AWG size: 1000 kcmil
- Nominal cross section: 500 mm²
- Bolt dimension (metric): 12
- Number of fixing holes: 1
- With sight-hole: Yes
- Slender flange model: No
- Insulated: No
