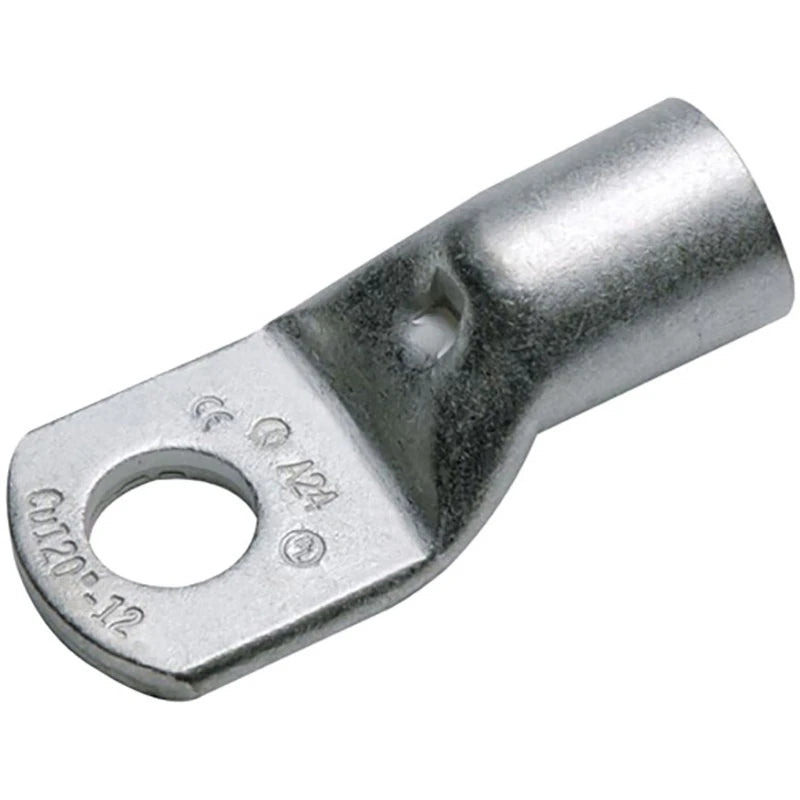

A-M Series M8 Stud Copper Tube Crimping Lug 4-6mm²
excl. VAT
💳 0% APR Finance Available*
The 4mm²-6mm² Copper Tube Crimping Lug with an M8 stud is engineered for high-performance and durability. Constructed from electrolytic copper with a purity exceeding 99.9%, this crimping lug ensures superior conductivity and reliability. It features an annealed copper tube for optimal ductility, which prevents severe deformation during crimping. With a maximum voltage rating of 11kV and an operating temperature range of -50°C to +150°C, it is ideal for demanding applications. The lug is electrolytically tin-plated to prevent oxidation and has a practical design including a sight-hole for easy conductor insertion.
Technical Specifications
Download Product Technical Data Sheet
- Type: Copper Tube Crimping Lug
- Surface Protection: Tinned
- Flange Shape: Ring Shape
- Material: Copper
- Connecting Angle: 180° (horizontal)
- Nominal Cross Section: 6 mm²
- Bolt Dimension (Metric): 8
- Number of Fixing Holes: 1
- With Sight-Hole: Yes
- Slender Flange Model: No
- Insulated: No
- Conductor Category: Class 5 = Flexible
- Maximum Voltage Rating: 11kV
- Operating Temperature Range: -50°C to +150°C
Designed for flexibility and high electrical performance, this crimping lug is a reliable choice for a range of industrial and electrical applications.
