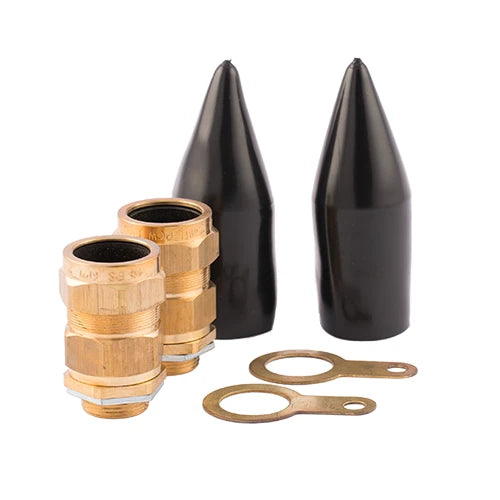

CW50S LSZH Gland Pack

This 4-part brass cable gland is suitable for both indoor and outdoor use with all types of steel wire armoured (SWA) cables. It ensures an environmental seal on the outer cable sheath and provides mechanical cable retention along with electrical continuity via armour wire termination. With an operating temperature range of -20°C to +80°C, it offers reliable performance in diverse conditions. The gland is rated IP66 (EN60529) for excellent protection against dust and water ingress, and is approved to BS EN 62444:2013. Each pack includes the gland(s), steel locknut(s), earth tag(s), and LSZH shroud(s).

Technical Specifications

Download Product Technical Data Sheet

• Material: Brass
• Thread Type: Metric
• Ingress Protection: IP66 (EN60529)
• Approval: BS EN 62444:2013
• Operating Temperature: -20°C to +80°C
• Pack Content: Gland(s), steel locknut(s), earth tag(s), and LSZH shroud(s)
• Protection: Provides mechanical cable retention, electrical continuity via armour wire termination, and environmental sealing on the cable sheath
