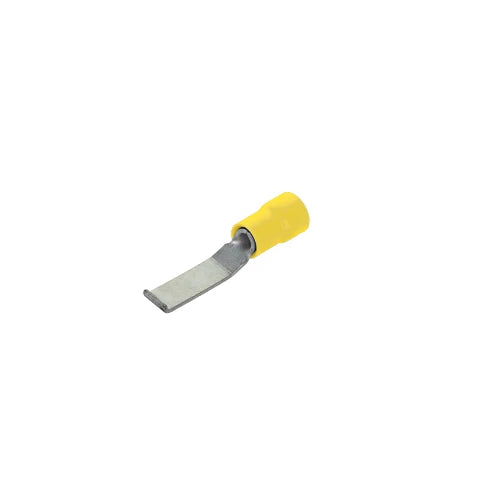

GF-PPL Hooked Blade Terminal PVC Insulated 4-6mm² 4.6 X 32.6mm Yellow 1000/Pack

The 4mm²-6mm² PVC insulated hooked blade terminal with a 17.5mm x 4.6mm blade size is crafted for easy and secure electrical connections. Made from high-purity electrolytic copper wire, it is electro-tin plated to prevent oxidation and ensure a long-lasting connection. The PVC insulation provides effective protection in environments with temperatures ranging from -20°C to +80°C. This hooked blade terminal is designed for ease of conductor insertion and reliable performance in various applications.

Technical Specifications

Download Product Technical Data Sheet

Solderless copper terminals for copper conductors
Insulation: Polyvinyl chloride (PVC)
Flange shape: Hook shape
Colour insulation: Yellow
Sleeve form: Short
Max. current (Imax): - A
Bolt dimension (metric): -
Nominal cross section: 4 - 6 mm²
Reel packaging: No

For pull protected connections: No
Suitable for solid cores: No
Useful for stranded conductors: No
Suitable for high temperatures (to 650 °C): No
Suitable for flat conductors: No
Suitable for fine strand conductors: No
Suitable for insulated varnish: No
Suitable for round conductors: No
