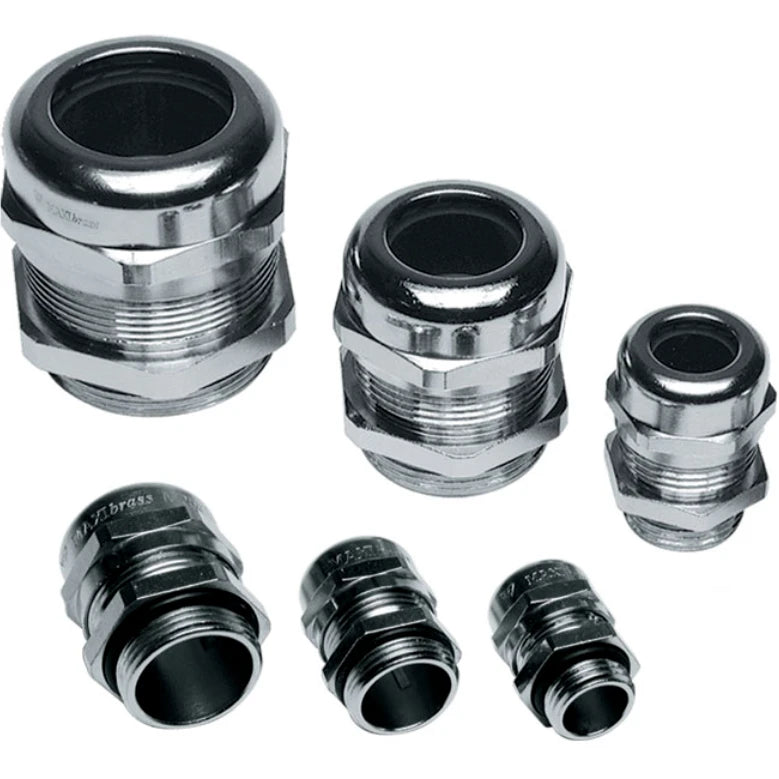

M40X1.5 Nickel Plated Brass Cable Gland

The M40x1.5 Cable Gland is made from nickel-plated brass, offering durability and corrosion resistance. It provides an IP68 protection class, ensuring reliable sealing and protection in various environmental conditions. This gland is designed for a wide temperature range of -25°C to +100°C and is CE marked, making it suitable for diverse industrial applications.

Technical Specifications

Download Product Technical Data Sheet

• Working temperature: -40 - 100°C
• For armoured cable: No
• Snapping in opening: No
• Flat cable sealing: No
• Separable (split) screw gland: No
• Multi cable sealing: No
• Locknut included: No
• Bend radius protection/trumpet flare: No
• Explosion-tested version: No
• Halogen free: No
• EMC-version: No
• Screened: No
• With strain relief: Yes
• Glass fibre reinforced: No
• Shock resistant: No
• Suitable for cable outer diameter: 19 - 28 mm
• Model: Straight
• RAL number: -
• Thread length: 9 mm
• Wrench width: 45 mm
• Nominal thread size metric/PG: 40
• Hexagon angular dimension: 50 mm
• Pitch thread: 1.5 mm
• For ATEX classification, Ex-zone dust: None
• Thread type: Metric
• Material qualifier: Brass
• Material: Metal
• For ATEX classification, Ex-zone gas: None
• Degree of protection (IP rating): IP68
• Type of sealing: Sealing ring
• Surface protection: Nickel-plated
