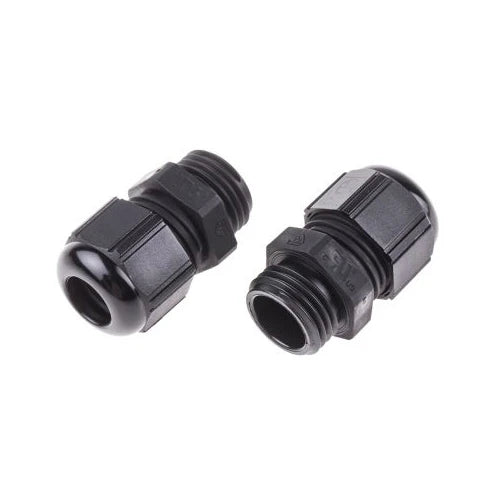

M50X1.5 Polyamide Pa6.6 Cable Gland Black
Original price
£7.07
-
Original price
£7.07
Original price
£7.07
£7.07
-
£7.07
Current price
£7.07
excl. VAT
💳 0% APR Finance Available*
Area Required
Include Extra
%
Waste
This M50x1.5 cable gland is made from high-quality polyamide PA6.6, providing excellent durability and self-extinguishing properties, classified under UL 94 V2. With a temperature range of -20°C to +90°C and IP68 protection class, it is designed to ensure secure sealing and strain relief for cables in harsh conditions. The gland is CE marked and suitable for cables with an outer diameter ranging from 27 to 35 mm. It does not include a locknut but provides strain relief for cable installations.
Technical Specifications
Download Product Technical Data Sheet
- Material: Polyamide (PA)
- Colour: Black
- Surface Protection: Untreated
- Thread Type: Metric
- Thread Size: M50x1.5
- Thread Length: 12 mm
- Pitch Thread: 1.5 mm
- Wrench Width: 55 mm
- Hexagon Angular Dimension: 55 mm
- RAL Number: 9005
- Working Temperature: -40°C to +100°C
- Degree of Protection (IP Rating): IP68
- Sealing Type: Sealing ring
- Suitable for Cable Outer Diameter: 27 - 35 mm
- Strain Relief: Yes
- Locknut Included: No
- For Armoured Cable: No
- EMC Version: No
- Halogen Free: No
- Explosion-Tested Version: No
- Bend Radius Protection/Trumpet Flare: No
- Snapping in Opening: No
- Shock Resistant: No
- ATEX Classification (Ex-Zone Dust/Gas): None
