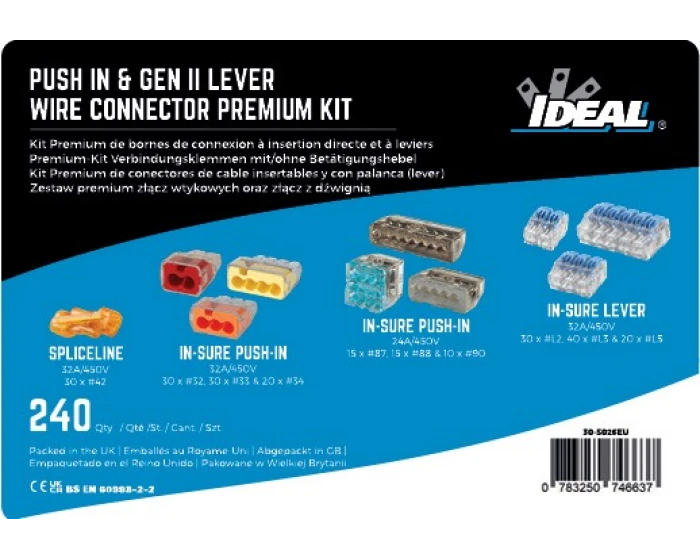

Push In And Gen Ii Lever Wire Connector Premium Kit 240 Pcs.

IDEAL Gen II Lever Wire Connectors offer a cost-effective and efficient solution for joining solid, stranded, or flexible conductors. Featuring innovative levers that open in the opposite direction of the insertion point, these connectors securely lock in position to prevent accidental loosening or pull-out. Rated at 32A, they are reusable and accommodate a wide range of wire types and sizes, from 0.2mm² to 4.0mm² for solid and stranded wires, and 0.14mm² to 4.0mm² for flexible wires.

Package Includes:

• 30 x 32A 2-Port Gen II Lever Wire Connectors
• 40 x 32A 3-Port Gen II Lever Wire Connectors
• 20 x 32A 5-Port Gen II Lever Wire Connectors
• 30 x 32A 2-Port Push In Wire Connectors

Technical Specifications

Download Product Technical Data Sheet

• Rated Current: 32A
• Wire Type: Solid, stranded, and flexible conductors
• Wire Size:
  • Solid and Stranded: 0.2mm² - 4.0mm²
  • Flexible: 0.14mm² - 4.0mm²
• Connector Types:
  • 2-Port Gen II Lever Wire Connectors
  • 3-Port Gen II Lever Wire Connectors
  • 5-Port Gen II Lever Wire Connectors
  • 2-Port Push In Wire Connectors
• Voltage Rating: 450V
• Certification: CE, UKCA, UL
• Compliance: 18th Edition Wiring Regulations (UK)

The IDEAL Gen II Lever Wire Connectors provide a quick, reliable, and reusable solution for electrical connections, reducing installation time while ensuring compliance with key standards.
