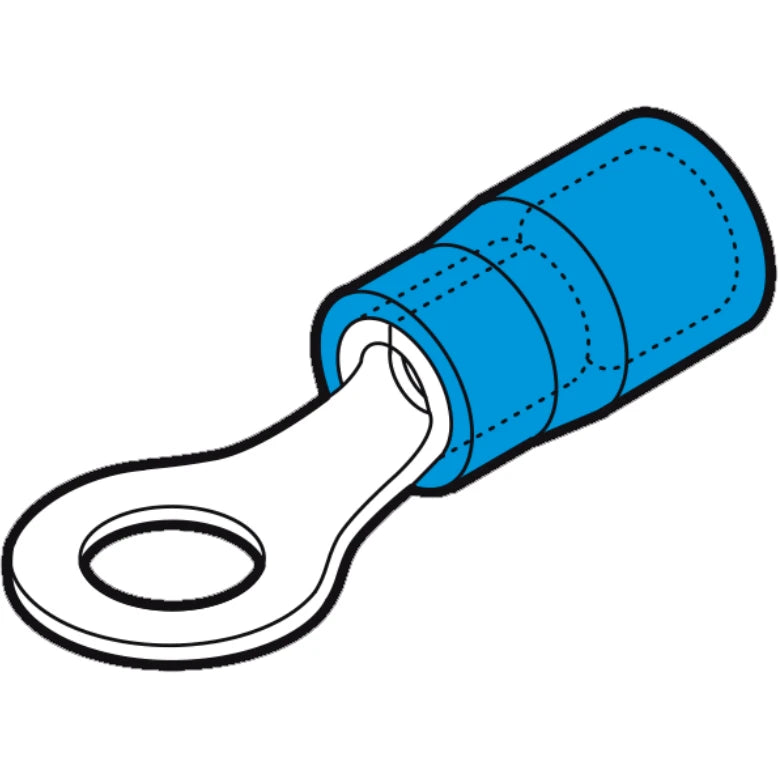

Ring Terminal Blue

The 1.5mm²-2.5mm² Halogen-Free Polycarbonate Insulated Ring Terminal combines superior insulation and high durability with an environmentally friendly design. Crafted with a polycarbonate insulation sleeve, this terminal is ideal for use in demanding electrical applications requiring robust, halogen-free protection.

Technical Specifications

Download Product Technical Data Sheet

• Material: Copper
• Insulation: Polycarbonate (PC)
• Surface Protection: Tinned
• Flange Shape: Ring
• Nominal Cross Section: 1.5 - 2.5 mm²
• Bolt Dimension (Metric): 6
• Temperature Range: -20°C to +115°C
• Colour Insulation: Blue
• Sleeve Form: Short

Product Details

• Polycarbonate Insulation Sleeve provides excellent protection and durability in a temperature range from -20°C to +115°C.
• Halogen-Free Design ensures safer use by eliminating hazardous fumes.
• Electrolytically Tin-Plated Copper prevents oxidation and enhances conductivity.
• Annealed Copper guarantees optimum ductility for easier conductor insertion and reliable connections.
• Ring Shape Flange ensures a secure fit onto the M6 stud, providing stable electrical connections.

This terminal is perfect for applications requiring reliable, halogen-free insulation and a secure connection for fine stranded conductors.
