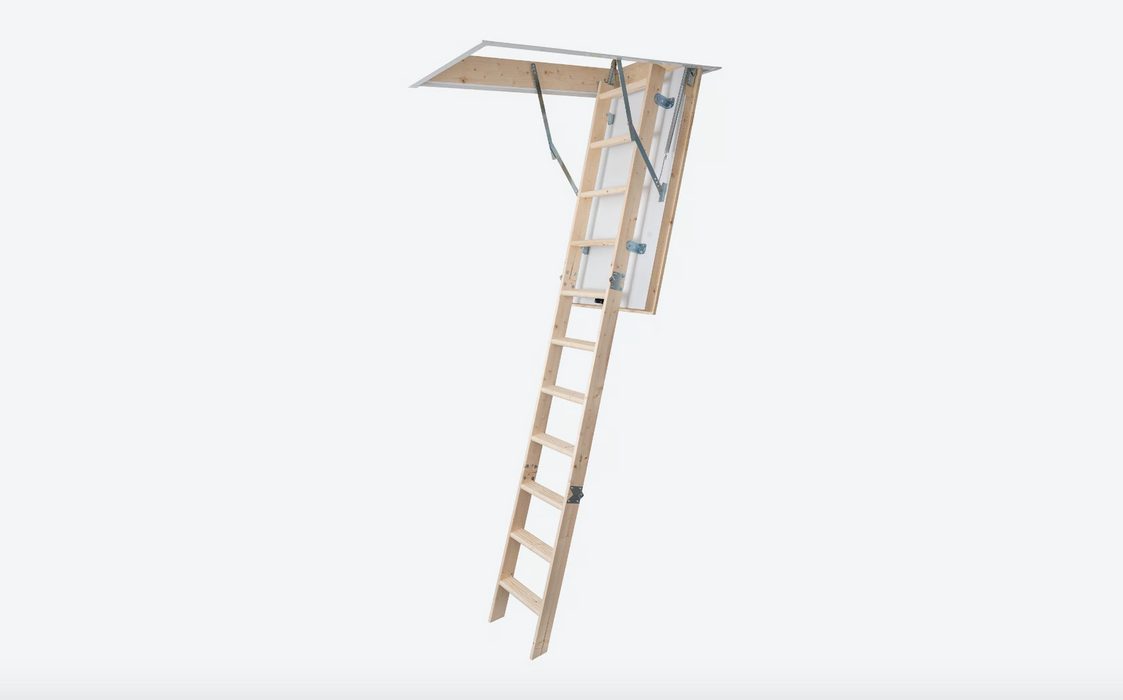

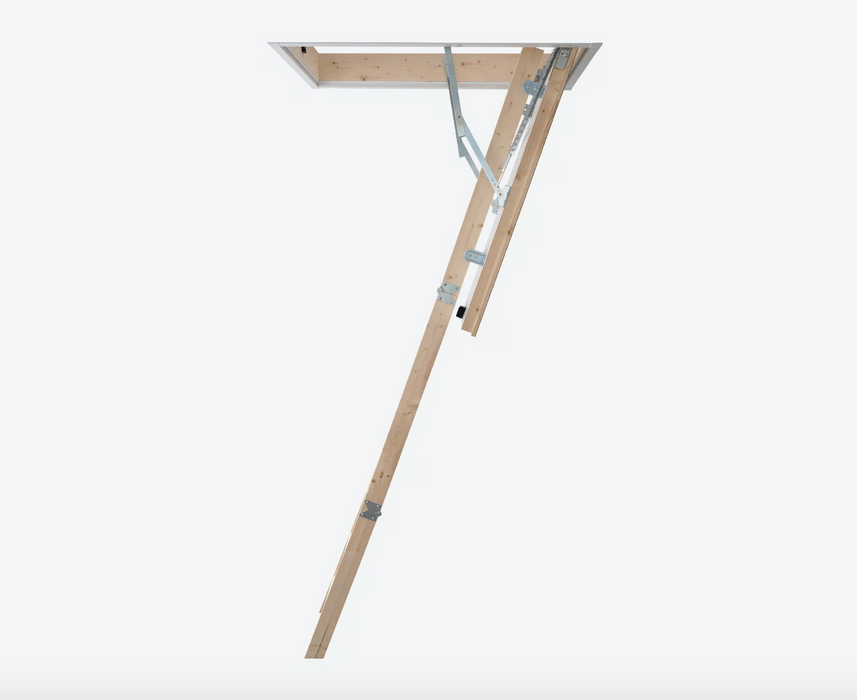

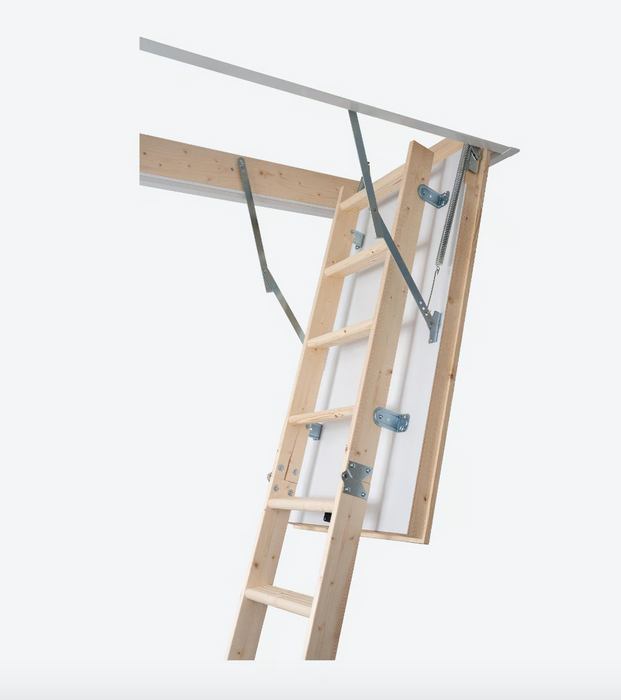

Loft ladder SW40-5
excl. VAT
💳 0% APR Finance Available*
- Description
- Technical Specifications:
The SW40-5 Folding Loft Ladder offers a simple and efficient solution for safe and secure loft access. Fully assembled for quick installation, it requires no headroom or storage space in the loft as the ladder folds neatly into the hatch. Made from solid spruce with non-slip treads, it features a white trapdoor with 34 mm insulation, ensuring both safety and energy efficiency. Available in three standard sizes, the SW40-5 is tailored for UK homes with various joist spacings and floor-to-ceiling heights. With optional accessories and an extension kit for added flexibility, this loft ladder combines functionality and style, all while meeting EN 14975 standards.
-
Opening Size (Length x Width):
- Variant 1: 115 cm x 55 cm.
- Variant 2: 120 cm x 60 cm.
- Variant 3: 120 cm x 70 cm.
-
Floor-to-Ceiling Height:
- Variant 1: Up to 282 cm.
- Variants 2 & 3: Up to 284 cm.
-
Total Going:
- Variant 1: 125 cm.
- Variants 2 & 3: 126 cm.
-
Swing Clearance:
- Variant 1: 158 cm.
- Variants 2 & 3: 159 cm.
-
U-Value: 1.1600 W/m²*K (all variants).
-
Materials:
- Ladder & Treads: Solid spruce, non-slip with 28 mm thickness and 82 mm depth.
- Trapdoor: Sandwich construction, 40 mm thick with 34 mm insulation.
- Casing: Spruce, 14 cm height, 18 cm thickness.
-
Outside Casing Dimensions:
- Variant 1: 113 cm x 54 cm.
- Variant 2: 117.5 cm x 57.6 cm.
- Variant 3: 117.5 cm x 67.6 cm.
-
String Dimensions: 21 mm thickness x 84 mm depth (all variants).
-
Maximum Load: 150 kg (all variants).
-
Product Weight:
- Variant 1: 27 kg.
- Variant 2: 27 kg.
- Variant 3: 28 kg.
Optional Accessories:
Enhance functionality with plastic feet, architraves, handrails, and an extension kit (up to 47 cm additional height).
Top Tip: Always measure to the back plate mounting location in your loft space to ensure you select the correct size.
With the SW40-5 Loft Ladder, you get durability, ease of installation, and a seamless design tailored to your home.
