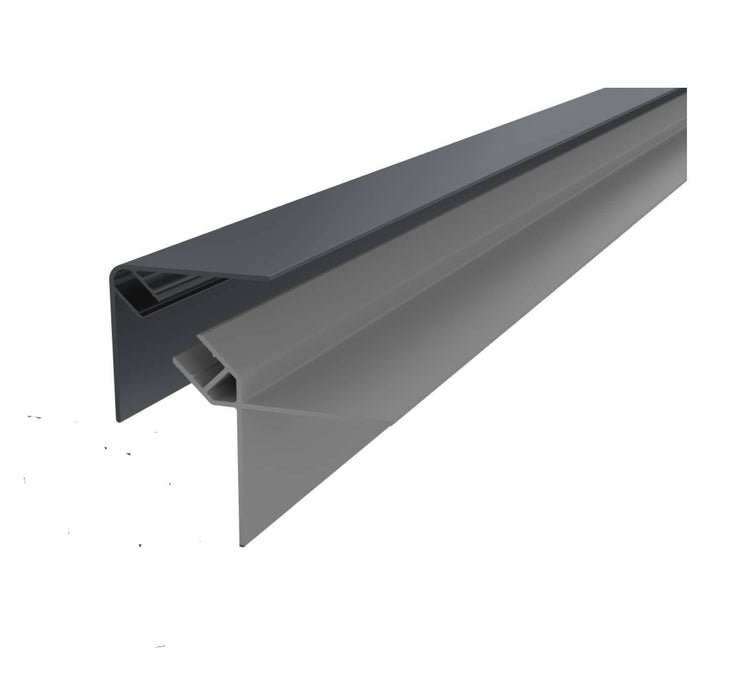

Mill Finish Vertical Coastline Composite Cladding 90° External Receiver 44.9mm (5m length)
excl. VAT
💳 0% APR Finance Available*
- Description
- Installation Guide
Elevate your exteriors with the Mill Finish Vertical Coastline 90° External Receiver. This 5m wonder, boasting a width of 44.9mm, is a pivotal element of our composite cladding system. Crafted with premium aluminium trims, this external receiver not only enhances your property's aesthetic appeal but significantly improves your bottom line. Colour matched to the Coastline Range, it ensures a seamless integration into your exterior design, creating a stylish and vibrant facade.
Designed as part of the Vertical Coastline system, this external corner is a testament to reliable and long-lasting cladding. Its durability is unmatched, with a power coating that adds to its strength levels. At 5 meters long, it maintains consistency in size with other key products in the range. Install this piece to timber battens on an outward-facing 90° corner for a robust and visually pleasing cladding solution.
*Product comes without the 90° External Cover
- Width: 44.9mm
- Length: 5m
- Colour: Mill finish
- Material: Aluminium
For our Coastline installation guide, click here.
Our installation instructions aim to offer a comprehensive guide, but we always advise consulting detailed fitting instructions for best results.
Coastline composite cladding boards and their accompanying aluminium trims are engineered to simplify the installation process. They should be affixed to 38mm x 25mm timber wall battens, with a maximum vertical spacing of 500mm. Window reveals should be completed using specific trims such as Window Reveal Trim (CL009), Window Reveal Corner Trim (CL008), Window Head Trim (CL003), and appropriately cut cladding boards.
Upon completing the window reveals, the Starter Bar (CL001) can be secured to the underside of the walls' vertical battens. Subsequently, External Corner Trim (CL005), Internal Corner Trim (CL006), Head Trim (CL002), Butt Joint (CL007), and End Closer (CL004) can be installed.
It's crucial to fit all trims before fixing the cladding boards to ensure proper alignment and attachment.
Aluminium trims should be secured to battens using 25mm stainless steel screws, with notches made for the Starter Bar where necessary.
Capping boards should be affixed using 25mm stainless steel nails or screws around the window reveal.
Please note: Coastline composite cladding is intended for use on buildings with a maximum of three storeys and should be installed at least 1m from boundaries. Failure to adhere to the manufacturer's instructions may void the product guarantee.
