Coastline Horizontal Cladding Butt Joint - Moondust Grey (5m length)
excl. VAT
💳 0% APR Finance Available*
- Description
- Technical Specification
- Key Benefits
- Installation Guide
Enhance the exterior of your home with the Coastline Butt Joint in Moondust Grey. This stylish and durable cladding solution is designed to add a touch of elegance and colour to any property. Coastline cladding is lightweight, weatherproof, and easy to install, providing a professional finish with its full range of colour-coordinated, powder-coated aluminium trims and end closers.
- Length: 5m
- Thickness: 1.5mm
- Material: Aluminium extrusion
- Colour: Moondust Grey
- Pack Quantity: 1 Length
- Powder Coating: 80-90 microns
- Guarantee: 10 Year manufacturer guarantee against warping, cracking, and discoloration
- Certifications: BBA certified and fire tested to BS EN 13501-1
- Qualicoat Seaside Guarantee
- Durable and Weatherproof: Made from tough aluminium with a durable powder-coated finish, ensuring long-lasting performance in various climates.
- Minimal Expansion/Contraction: Special composite formulation minimises thermal expansion and contraction, eliminating the need for an additional membrane.
- Easy to Handle and Install: Lightweight material and specially developed aluminium trims simplify and speed up installation.
- Attractive and Fade-Resistant: Available in multiple colours with outstanding fade resistance, enhancing the aesthetic appeal of your property.
- Sustainable and Recyclable: Made from 100% recyclable materials, promoting sustainability.
- Comprehensive Guarantee: Comes with a 10-year guarantee against warping, cracking, and discoloration.
For our Coastline installation guide, click here.
Our installation instructions aim to offer a comprehensive guide, but we always advise consulting detailed fitting instructions for best results.

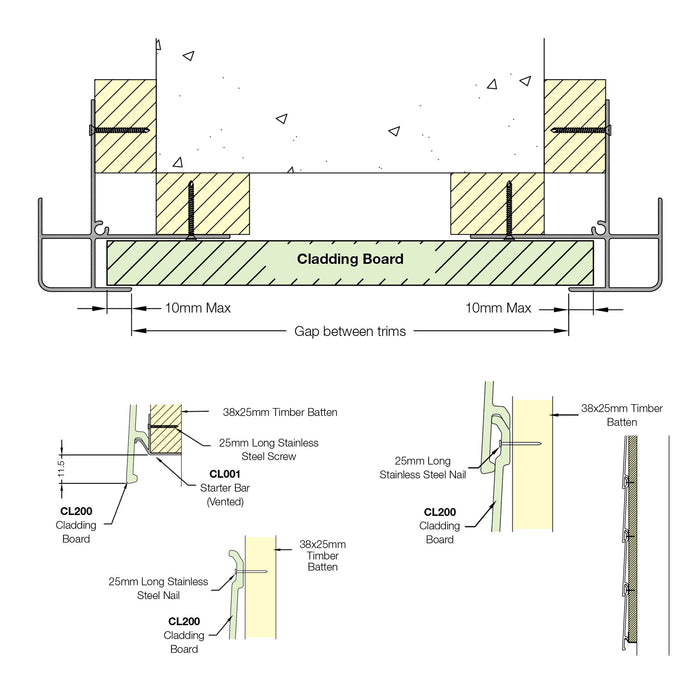

Coastline composite cladding boards and their accompanying aluminium trims are engineered to simplify the installation process. They should be affixed to 38mm x 25mm timber wall battens, with a maximum vertical spacing of 500mm. Window reveals should be completed using specific trims such as Window Reveal Trim (CL009), Window Reveal Corner Trim (CL008), Window Head Trim (CL003), and appropriately cut cladding boards.

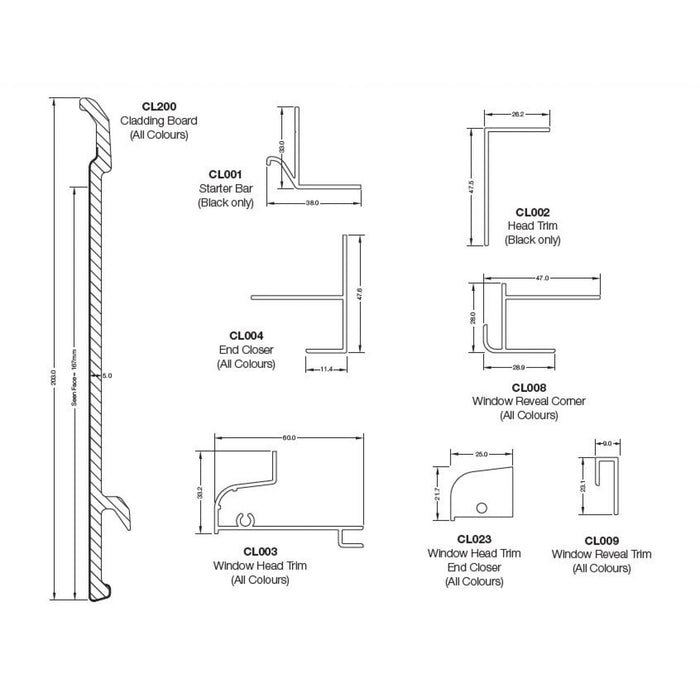

Upon completing the window reveals, the Starter Bar (CL001) can be secured to the underside of the walls' vertical battens. Subsequently, External Corner Trim (CL005), Internal Corner Trim (CL006), Head Trim (CL002), Butt Joint (CL007), and End Closer (CL004) can be installed.
It's crucial to fit all trims before fixing the cladding boards to ensure proper alignment and attachment.
Aluminium trims should be secured to battens using 25mm stainless steel screws, with notches made for the Starter Bar where necessary.
Capping boards should be affixed using 25mm stainless steel nails or screws around the window reveal.
Please note: Coastline composite cladding is intended for use on buildings with a maximum of three storeys and should be installed at least 1m from boundaries. Failure to adhere to the manufacturer's instructions may void the product guarantee.
